StripLayout Functions  Round Draw Module  Nest

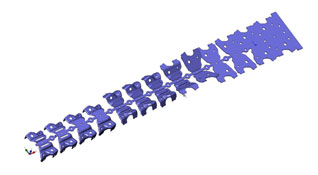

The strip layout module can be used for both progressive dies and transfer dies. It allows quickly modeling the true solid 3D strip in a very easy and logical way, resulting from our over 30-years experience shared with passionate die designers.

StripLayout Functions

The LogoPress™ strip module can be started from a blank and a folding/stamping process that was first defined using the LogoPress™ Unbending and Flattening tools or from dumb imported data provided by your customers or partners.

Any kind of parts, even those with non-constant thickness, are able to be managed. It also allows managing multiple parts in one strip, whether they be identical, mirrored or completely different parts in the same strip.

StripLayout Functions

Key functions :

  • Multiple part management
  • Nesting optimization
  • Excel spreadsheet including useful data for quoting
  • Drag and drop actions
  • Insert/delete stations
  • Material usage info
  • Force info
  • Global center of force computation
  • Local center of force computation
  • Spring back management
  • Associativity with the Unbending/Flattening process
  • OpenGL preview

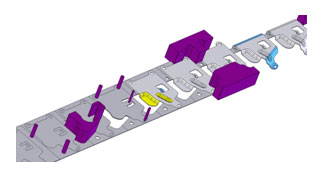

  • Automatic creation of internal punches
  • Powerful assistant tool to define punches in the skeleton
  • Punch patterning

GO EVEN FURTHER WITH ProgSim (Option for DieDesign or DieDesign PREMIUM)
The virtual tryout press
