Unbending Functions

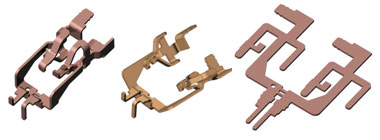

In only a few mouse clicks you can unfold your part and then model the intermediate stages that will allow defining the process that will become your strip layout. This can be done from a native SOLIDWORKS™ model or from an imported model, without preparing it in any specific way.

Unbending Functions

These unfolding/unbending features can very easily be edited. This way, you can switch from a full unbending to a partial unbending. You can change the partial unbending angle value, you can manage the spring back options, the bend allowance, etc.

Highlighted Features :

Gusset management
Flange management
Flange management
Gusset management

Key functions :

  • Automatic bend analysis
  • Customizable and flexible bend allowance management
  • Full or partial unbending
  • Spring back management
  • Gusset management
  • Flange management
  • Shearing management
  • Non constant thickness management
